| Business Type | Exporter, Supplier, Trader |
| Driven Type | Electric |
| Automatic Grade | Automatic |
| Max. honing stroke | 400 mm |
| Click to view more | |
Product Details
Table traverse
1700 mm
Net weight (approx.)
1500 Kgs
Shipping weight
2000 Kg
Max. Honing Capacity Diameter
200 mm
Min. Honing Stroke
50 mm
Distance from Spindle Center to Column
380 mm
Max. Distance Table to Spindle Nose
1000 mm
Spindle Speeds Infinitely Variable
50-300 rpm
Reciprocating Speeds Infinitely Variable
0.16m/min. mtr
Motor for Spindle Stroke
1.5 x 1440 RPM kw
Motor for Hydraulic
1.5 x 1440 RPM kw
Coolant Pump Motor
0.1 x 2800 RPM kw

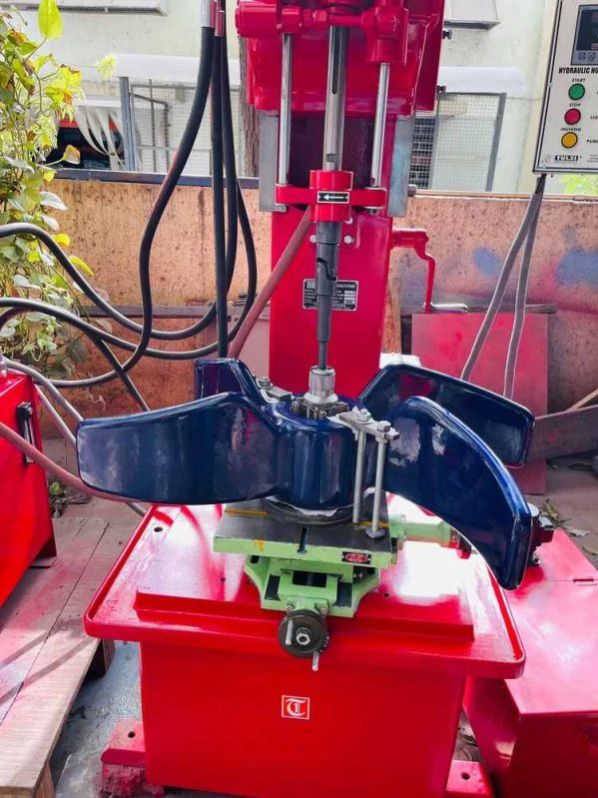

Looking for "Vertical Honing Machine" ?
